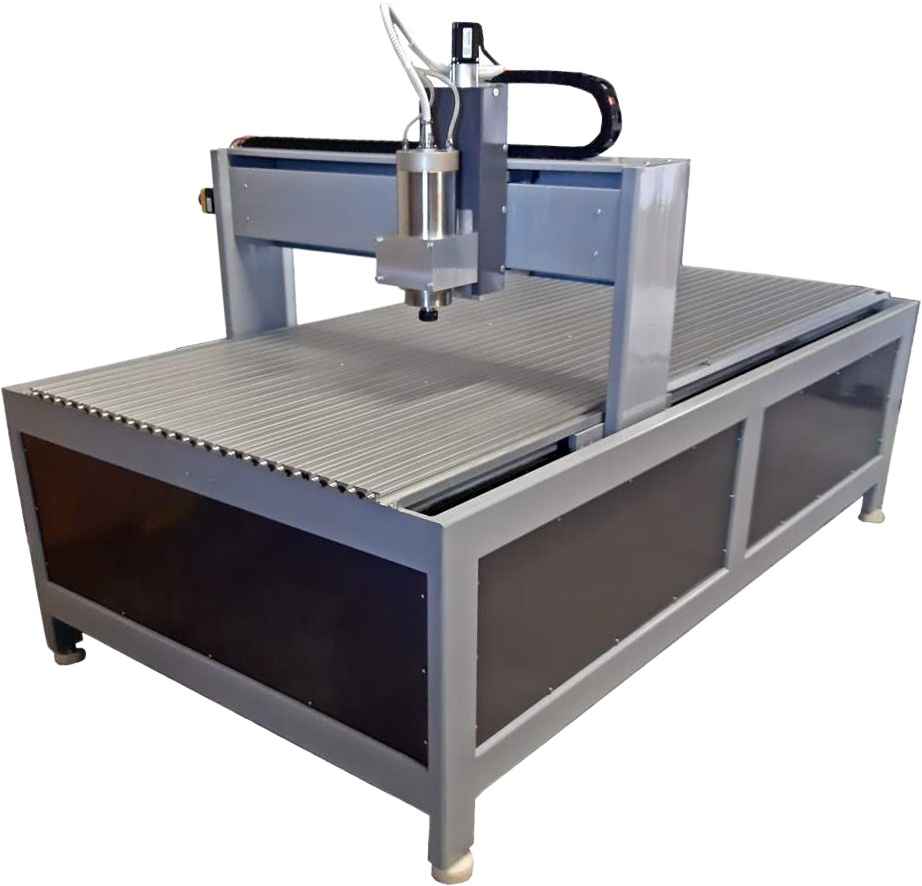

Daben 100/200 CNC milling machine

Workspace

Y-2000X-1000, Z-200mm

Table size

1160x2300mm

Table material

tabletop work table

Frame structure

steel frame structure

Control


3-axis microstep controller + control computer

control software: Mach3

Power transmission

ball screw

Drive

stepper motors

Guide rail

Hiwin linear wire

Spindle motor

2.2kW milling motor with frequency converter
Power: 2200W

Maximum speed: 24000rpm

Voltage: 230V

Current: 8.0A

Maximum frequency: 400Hz

Bearing: 2 x 7005C P4 + 2 x 7002C P4

Torque: 0.91Nm

Shaft end: ER20

Weight: 5.0kg

Speeds:

return accuracy: 0.01mm/min
quick travel speed: 5000mm/min

Protective mode

emergency stop button

Crowd

400kg
